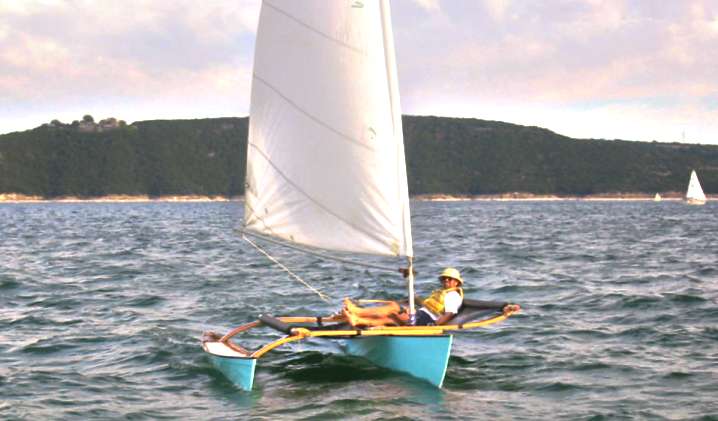

Lazy Sailin'

Flaquita (Spanish for skinny little girl), was designed and built to be a lightweight, car toppable, fast, safe sailboat that can be paddled, sailed or motored. I looked all over for plans for a boat that was similar to this. I found none. I would have been happy to purchase some plans. It’s a heck of a lot easier building a boat with plans, rather than having to design from scratch.

I wanted a boat that I could strap on top of my car, or haul on a small trailer, and travel to far away shores. Once I got there, I wanted a boat that could be unloaded and launched by one person. And could be launched without using a boat ramp, if none were available.

I had built a sailing dinghy before. It was a Bolger design Cartopper. I cartopped it from Texas to the Pacific Northwest as far north as Desolation Sound British Columbia. I sailed it in the Florida Keys. I traveled as far south as Rio Dulce, Guatemala. It is a terrific little boat, but it has some serious limitations. It sails great. It rows great. But with its rounded bottom, it's a dog under power. It also has quite low freeboard. That, combined with the lack of a self-bailing cockpit, made it less than safe in rough water. It would never sink, but if turned over in deep water, righting it and getting back in and sailing away seems improbable.

I wanted an improved boat.

I wanted a boat that was:

  • Cartoppable

  • Unsinkable

  • Self bailing

  • If capsized, easily righted by one person

  • Easily paddled

  • Capable of carrying lots of gear in water tight compartments

  • FAST. I set a modest goal of at least 10 knots under sail AND power

These goals made me look at multihulls. I had seen dugout canoes on the Rio Dulce fitted with outboards that were quite fast. Why not design a long, skinny hull with an outrigger and make it a real sailboat that was capable of good speed under power also. I saw photos of traditional Polynesian outrigger canoes. I liked the design. But car topping one and setting it up to sail with all that lashing to hold the outriggers on looked too time consuming. I wanted a boat easy and quick to set up, with no tools.

Flaquita is fast. It is easily driven. It is not as fast as a Hobie Cat. It has much less sail area.. But in moderate winds it does an easy 10 MPH. I have sailed the boat a half dozen times, but never in really strong winds, yet. Top speed, so far, according to my GPS, is 13.2MPH

With the ama to windward, she sails like a proa.
With the ama to leeward she sails like a trimaran.
I can’t tell much difference in speed between the two.

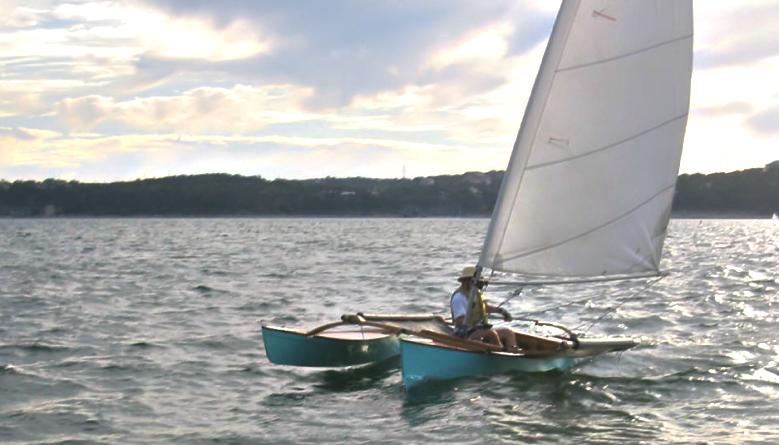

Almost Flying a Hull - Click to see larger image

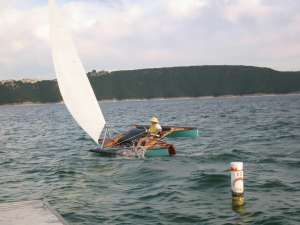

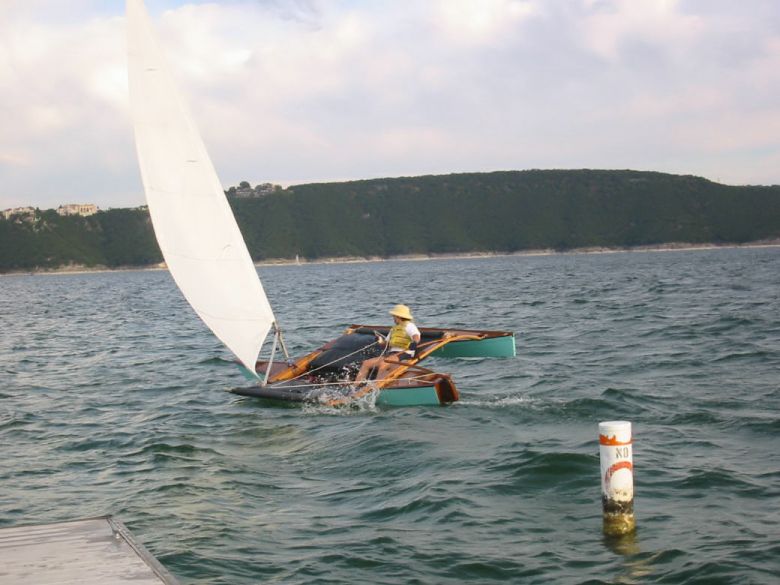

Oops! - Click to see larger image

With the ama to windward, one can enjoy the excitement of flying a hull. In gusty winds, one hand on the mainsheet to release it from the cam cleats is recommended.

When the wind stops, the trampolines may be roller furled out of the way and Flaquita may be paddled like a kayak. Cruising speed is about 3 MPH.

At this point. I have not tried a motor.

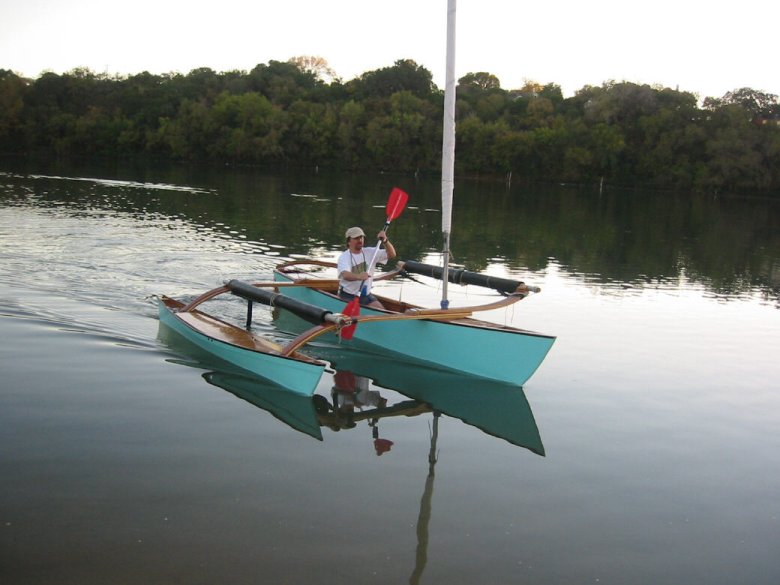

Paddling - Click to see larger image

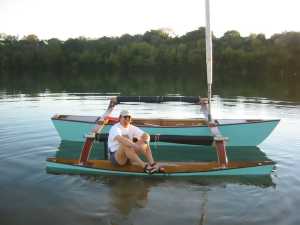

Sitting on the Ama - Click to see larger image

To make getting in and out of the water easy, I wanted an ama with enough dispacement to hold my body weight.

Flaquita can be cartopped or trailered. Beam is a legal 8 feet on the trailer.

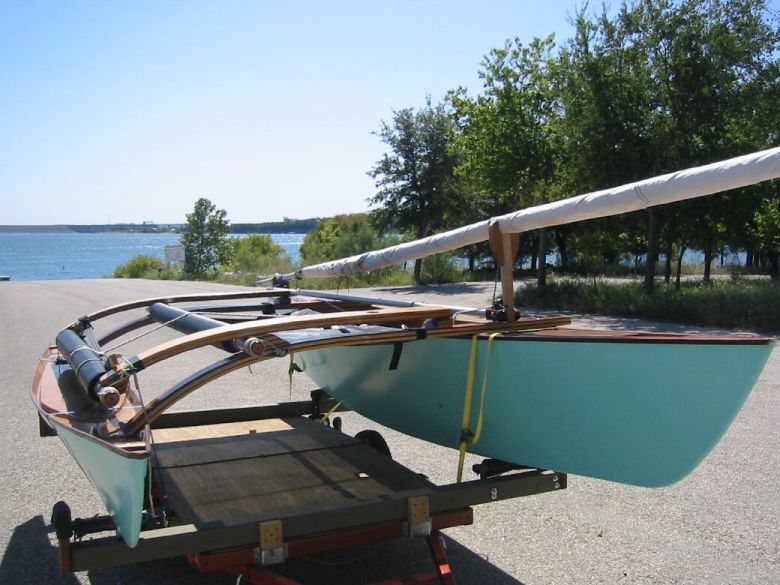

Flaquita on a Trailer - Click to see larger image

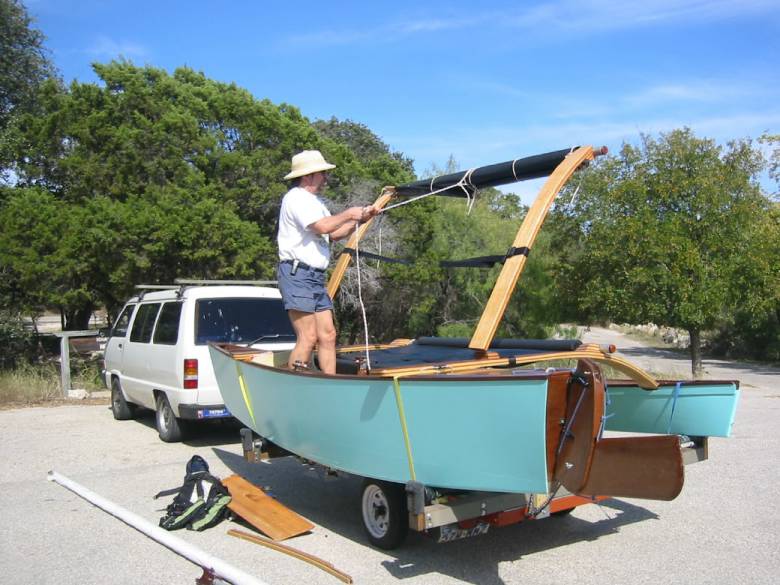

Raising the Outrigger - Click to see larger image

When ready to launch, the hinged outrigger gets flipped over.

Once lowered. The outrigger is secured with four carriage bolts and wing nuts.

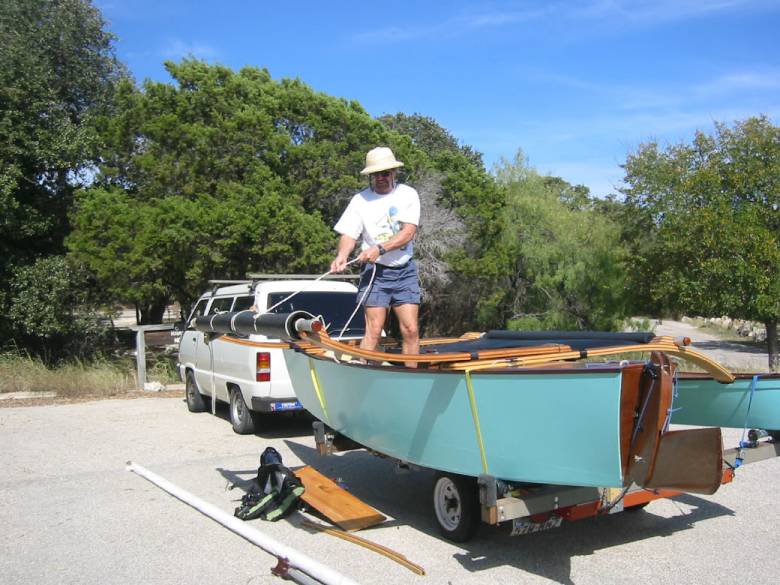

Outrigger Lowered - Click to see larger image

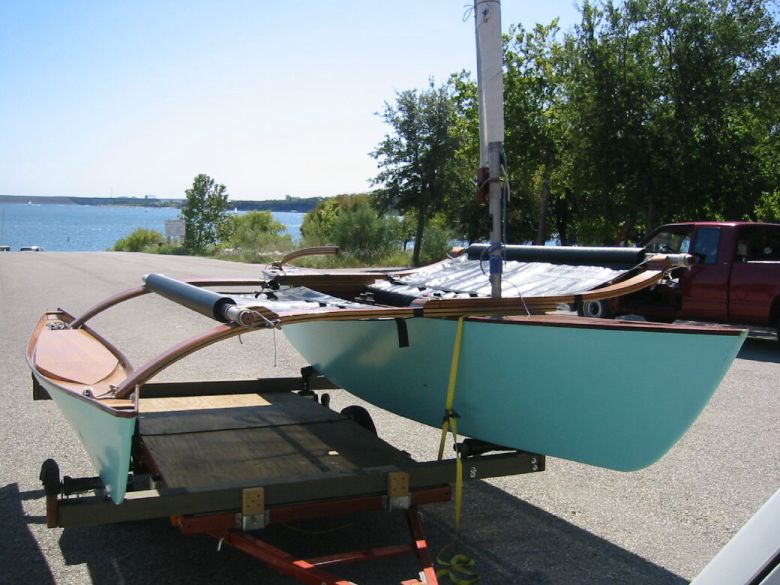

Ready to Launch - Click to see larger image

Unfurl the trampoline and secure it. Slip the mast into the mast tube. Ready to launch.

The mast is freestanding. The sail roller furls around it.

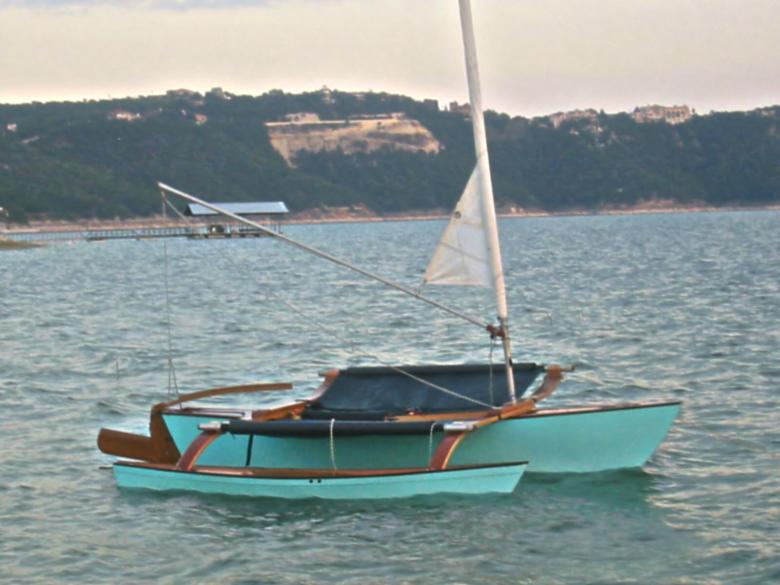

Anchored - Click to see larger image

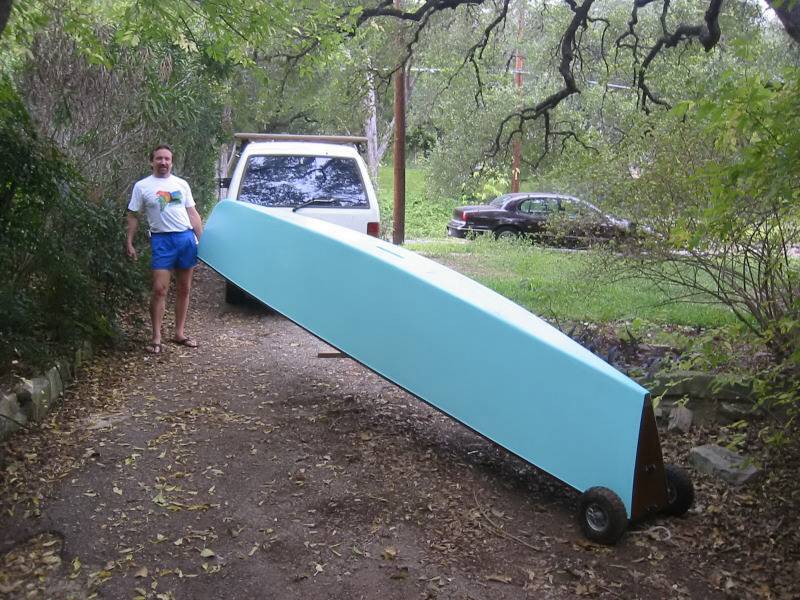

Rolling Flaquita Around - Click to see larger image

Flaquita can also be cartopped. Simple wheels are attached to roll her around.

One person can handle the weight of one end at a time.

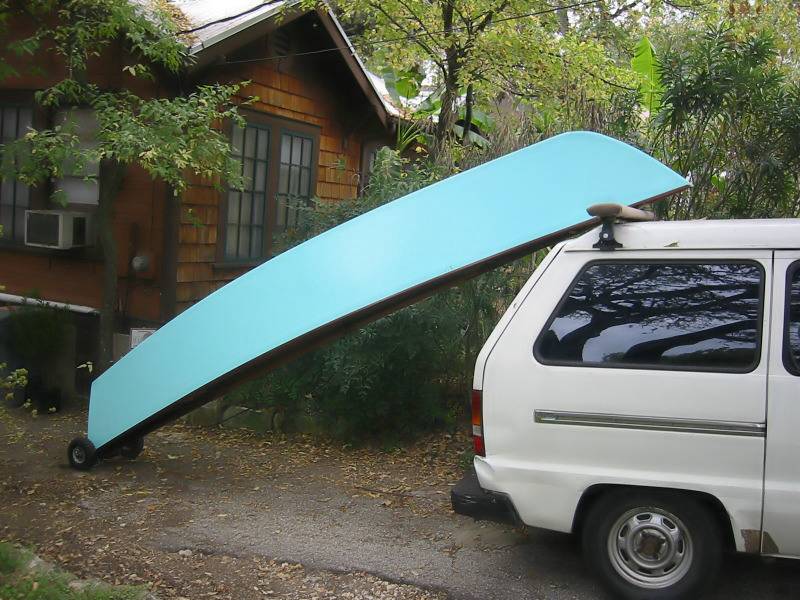

Leaning on the Van - Click to see larger image
